Westermo

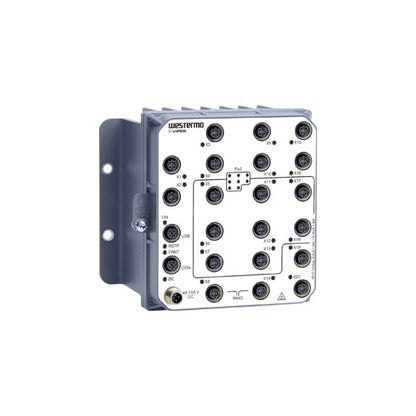

Westermo Viper-220A-P8-HV Managed Ethernet Switch

Westermo Viper-220A-P8-HV Managed Ethernet Switch

Regular price $5,235.00 USD
Regular price Sale price $5,235.00 USD
Sale Sold out

Lead Time: 4 - 8 Weeks

  • EN 50155 Managed PoE Routing Switch
  • 20 x 100 Mbps ports, whereof 8 PoE
  • 1 x USB
  • 1 x RS-232 console port
View full details

Description

he Viper-220A-P8-HV is a managed 20-port routing switch optimized for the needs of the railway rolling stock market. PoE ports offer effective powering of end devices. The Viper is designed to withstand the tough environment on-board trains, exposing the switch to constant vibration, extreme temperatures, humidity, and a demanding electrical environment.

A GORE-TEX® membrane prevents internal condensation. Threading integrated into the chassis provides for additional vibration resistance. High-level isolation between all interfaces enables direct connectivity to vehicle auxiliary power and protects against overvoltage and flashover. IP67 protection prevents the ingress of water and dust. An overall optimized design results in an extremely compact package in combination with very high MTBF for easy integration and low lifecycle cost.

Thorough type testing at independent ISO/IEC 17025 and ILAC MRA-certified labs, accredited to a wide range of standards, show that the Viper series fulfilled EN 50155 and other requirements. The state-of-the-art Westermo production facility ensures the quality of each individual unit, e.g. through temperature cycling burn-in testing.

The WeOS operating system offers an extensive suite of IP networking features for resilient and flexible networks, e.g. the FRNT ring protocol with very fast failover on 100 Mbps ports. The powerful layer 3 routing capability is very useful for separating networks in complex applications. The backup device accessory matches the Viper in robustness and offers easy configuration updates and backup.

Attachment

Datasheet

Specification

Number of ports: 22 Ports
10/100Mb (Megabit) POE Prots: 8 M12 Ports
M12 port: 12 10/100Mbps Ports
Serial port: 1 Console port with RS-232 standard
USB: 1 USB 2.0 port with M12 female A-code connector
Backup: Yes
LED Per Port: Yes
Power: Yes
Power Consumption (Output Adapter): 48V, 2.6A and 110V, 1.1A
MTBF: 366,500 hours
Network working layers: Layer 3
Switch type: Managed
Dimensions: 178 x 160 x 110 mm
Installation: Railway applications, Railway vehicles
Operating Temperature: -40 to 70 ° C
Operation Humidity: 5% to 95% RH
Standards and Certifications: EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-4, Emission industrial environments, EN 50121-4/IEC 62236-4, Railway signaling and telecommunications apparatus, EN 50121-3-2/IEC 62236-3-2 Railway applications – Rolling stock – apparatus, Tested and verified for Class S1, DB EMC Regulation 06, Commodity team Radio compatibility in VDB Rev 1.0 (Shunting Radio), Tested and verified for FCC part 15, E-Mark, Road Vehicles, E1 10R-058547, EN 61373 category 1, class A and B, EN 60068-2-27 20 g, 11 ms and 100 g, 6 ms, IP67
Storage Humidity: 5% to 95% RH
Storage Temperature: -55 to 85 ° C
