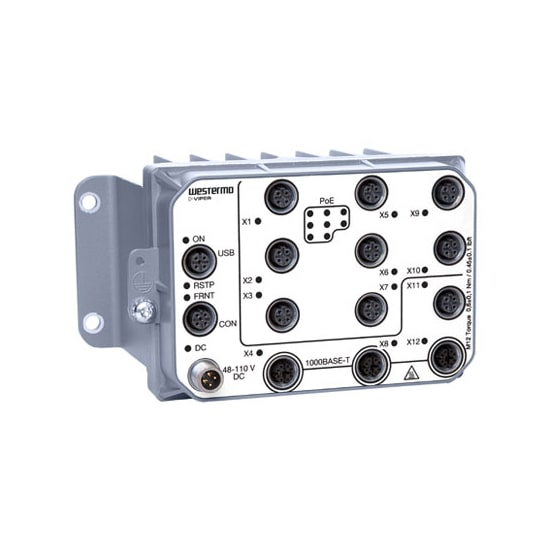

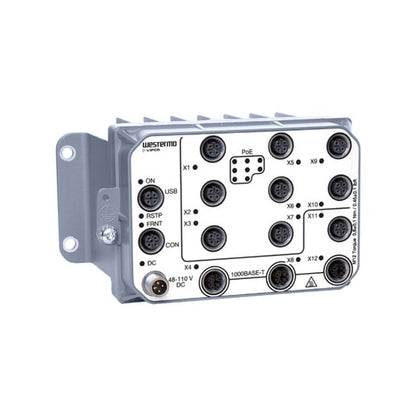

Westermo Viper-212A-T3G-P8-HV Managed Ethernet Switch

Westermo Viper-212A-T3G-P8-HV Managed Ethernet Switch

Regular price $5,441.00 USD
Regular price Sale price $5,441.00 USD
Sale Sold out

Lead Time: 4 - 8 Weeks

Westermo Viper-212A-T3G-P8-HV Key Features

  • EN 50155 Managed PoE Routing Switch
  • 3 x Gbps ports
  • 9 x 100 Mbps ports, whereof 8 are PoE
  • 1 x USB
  • 1 x RS-232 console port
View full details

Description

The Westermo Viper-212A-T3G-P8-HV managed Ethernet switch is a robust and reliable industrial solution for tough environments. The Viper-212A-T3G-P8-HV provides networking capabilities for critical applications and ensures maximum uptime and smooth communication across multiple devices. This Westermo Viper-212A-T3G-P8-HV is equipped with 12 ports that support a layer 3 managed switch and offers PoE functionality to power essential devices such as access points and security cameras. Its advanced features and compliance with the EN 50155 managed gigabit switch are vital in industrial systems demanding high-speed data transmission. For industries looking for a dependable Westermo switch, the Viper 212A T3G P8 HV stands out as an optimal solution and delivers powerful performance and a high level of integration into any infrastructure. Its ability to route data efficiently within complex systems is really practical for organizations that prioritize connectivity and industrial automation.

Compact Design with Powerful Functionality
One of the standout features of this Westermo Ethernet switch is its compact design that incorporates 12 ports for efficient network routing. This compact 12-port routing switch handles a combination of both high-speed and low-speed connections, with 3 x Ethernet 1 Gbps (X-coded) and 9 x Ethernet 100 Mbps (D-coded) ports available. This enables reliable data transmission between critical network elements such as NVRs (Network Video Recorders) and other monitoring systems. Additionally, the 8 x Ports with PoE deliver power to connected devices, eliminate the need for additional wiring, and enhance system efficiency in remote or challenging environments.

Enhanced Durability and Environmental Protection
The Westermo Viper-212A-T3G-P8-HV switch withstands the harshest industrial conditions in Factory Automation, Railway, Road Transportation, Oil and Gas. Its GORE-TEX® membrane and IP67 protection ensure that the switch is dust-tight and water-resistant for outdoor use and extreme weather conditions. The full metal housing provides additional robustness and increases the product's longevity in high-stress industrial applications. Moreover, with an operating voltage range of 33.6 to 143 VDC (28.8 to 154 VDC for 100 ms) and an operating temperature range of -40 to +70°C (-40 to +158°F) (+85°C for a limited time), the Viper 212A T3G P8 HV switch can function effectively even under fluctuating power conditions and in extreme temperatures.

High-Performance Network Features
The Westermo Viper-212A-T3G-P8-HV managed switch has been powered by the reliable WeOS operating system to ensure advanced networking capabilities, such as support for the FRNT ring protocol. This allows for ultra-fast network recovery times, so you cannot afford downtime. The Westermo Viper 212A T3G P8 HV maintains optimal performance with a high MTBF rating and confirms continuous operation in long-term industrial deployments. The EN 50155 managed Gbps combines gigabit-speed connectivity and intelligent power management in any industrial Ethernet network.

Westermo Viper-212A-T3G-P8-HV Certifications
The Westermo Viper-212A-T3G-P8-HV managed switch complies with the highest industrial standards to ensure its safety and performance in various applications. It has received numerous certifications, including CE, E1, and NFPA 130 for use in automotive sectors. Additionally, the switch meets stringent fire safety standards such as EN 45545-2 for fire protection in railway applications. This Westermo switch also adheres to rigorous EMC standards to guarantee minimal electromagnetic interference in sensitive environments. Detailed specifications and approvals can be found in the Westermo Viper-212A-T3G-P8-HV datasheet.

The Westermo Viper-212A-T3G-P8-HV managed Ethernet switch is a top-tier solution that offers advanced networking features, robust protection, and certifications for industrial use. This industrial managed Ethernet switch is available at the best price through Easy World Automation. It is an ideal choice for anyone looking to upgrade their network infrastructure in the Middle East (UAE (Dubai, Abu Dhabi), KSA (Al Khobar, Riyadh), Kuwait, Qatar, and Oman) or beyond. Buy this layer 3 switch to secure this high-performance Westermo switch for your demanding industrial applications.

Attachment

Datasheet

Specification

Number of ports: 14 Ports
10/100Mb (Megabit) POE Prots: 8 M12 Ports
M12 port : 1 10/100Mbps Port and 3 10/100/1000Mbps Ports
Serial port: 1 Console port with RS-232 standard
USB: 1 USB 2.0 port with M12 female A-code connector
Backup: Yes
LED Per Port: Yes
Power: Yes
Power Consumption (Output Adapter): 48V, 2.4A and 110V, 1A
MTBF: 399,000 hours
Network working layers: Layer 3
Switch type: Managed
Dimensions: 178 x 100 x 110mm
Installation: Railway applications, Railway vehicles
Operating Temperature: -40 to 70 ° C
Operation Humidity: 5% to 95% RH
Standards and Certifications: EN 61000-6-2, EN 61000-6-4, EN 50121-4/IEC 62236-4, EN 50121-3-2/IEC 62236-3-2, Tested and verified for Class S1, DB EMC Regulation 06, Commodity team Radio compatibility in VDB Rev 1.0 (Shunting Radio). Compliant with SBB requirements, Tested and verified for Class S1, ÖBB Radio compatability in near field in accordance with ÖBBInfrastructure Edition 4, Revision 14 Shunting Radio, FCC part 15, EN 61373 category 1, class A, EN 60068-2-27 10 g, 30 ms, EN 50124-1, EN 50155/IEC 60571, EN 45545-2, IP67
Storage Humidity: 5% to 95% RH
Storage Temperature: -55 to 85 ° C
Protocols and work standards: IEC/ISO 17025, DHCP, FRNT, VRRP
Hardware installation guide: Yes
