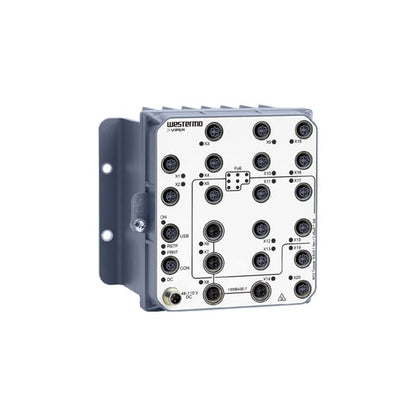

The Westermo Viper-120A-T4G-P8-HV managed Ethernet switch is a reliable and advanced member of the Viper-20A-PoE series for rugged environments. The device ensures uninterrupted connectivity in demanding applications, such as Factory Automation, Oil and Gas, Railway, and Road Transportation. The Viper-120A-T4G-P8-HV combines cutting-edge technology with robust construction and delivers exceptional performance. Its managed 20-port routing capabilities provide unparalleled flexibility for powering end-devices and connecting high-bandwidth equipment like access points and NVRs (Network Video Recorders). Its GORE-TEX® membrane and metal construction offer superior protection against dust, water, and other environmental factors. This industrial managed Ethernet switch simplifies network management with advanced features like the WeOS operating system, IP networking capabilities, FRNT ring protocol, and layer 3 routing, and ensures high-speed and reliable data transmission.
Rugged Design for Extreme Environments
The Westermo Viper-120A-T4G-P8-HV managed Ethernet switch IP67-rated full metal housing that protects the device from dust, water, and physical damage to ensure long-term durability. The integrated GORE-TEX® membrane adds an extra layer of environmental resistance and enables the switch to function effectively in high-humidity and varying pressure conditions. The Westermo Viper-120A-T4G-P8-HV switch guarantees reliable operation in all circumstances.
Advanced Networking and Management Features
The Viper-120A-T4G-P8-HV Ethernet switch offers a suite of advanced networking capabilities and is powered by the WeOS operating system. Its layer 3 managed switch features and IP networking functionalities allow integration into complex industrial networks. The switch’s FRNT ring protocol ensures rapid network recovery in less than 20 milliseconds and minimizes downtime. This Westermo viper, with managed 20-port routing capabilities, includes 4 Gbps ports—2 of which are PoE-enabled, and 16 100 Mbps ports, 6 of which support PoE, connects high-bandwidth devices like access points and NVRs while efficiently powering end-devices through its PoE functionality.
Power Versatility and Energy Efficiency
The Westermo Viper-120A-T4G-P8-HV managed switch handles a wide range of power inputs, from 48 to 110 VDC, with operational peaks between 33.6 and 143 VDC (short-term tolerances up to 28.8 to 154 VDC). This versatility ensures compatibility with diverse power systems for global industrial applications. Its PoE ports enhance energy efficiency by delivering power directly to end-devices and reduce the need for additional cabling and power supplies. The Viper-120A-T4G-P8-HV managed routing switch is an economically and environmentally sound choice that simplifies installation and lowers operational costs.
Westermo Viper-120A-T4G-P8-HV Certifications
The Westermo Viper-120A-T4G-P8-HV managed Ethernet switch meets the highest industrial standards and ensures safety and reliability in demanding applications. Key certifications include CE, E1, and UKCA, which comply with European safety, electromagnetic compatibility, and quality directives. Its EN 50155 certification highlights suitability for railway and transportation applications and guarantees resistance to shock, vibration, and temperature extremes. The Westermo switch also meets stringent requirements for EMC, insulation, and fire protection for deployment in environments. For detailed technical specifications, refer to the Westermo Viper-120A-T4G-P8-HV datasheet.
The Viper 120A T4G P8 HV offers exceptional durability, advanced features, and compliance with rigorous standards. Easy World Automation provides competitive pricing and expert support for the Westermo Viper-120A-T4G-P8-HV managed Ethernet switch in the Middle East (UAE (Dubai, Abu Dhabi), KSA (Al Khobar, Riyadh), Kuwait, Qatar, and Oman). Whether you need to buy, sell, or inquire about its price, our company is Moxa's trusted partner for all your industrial networking needs.
