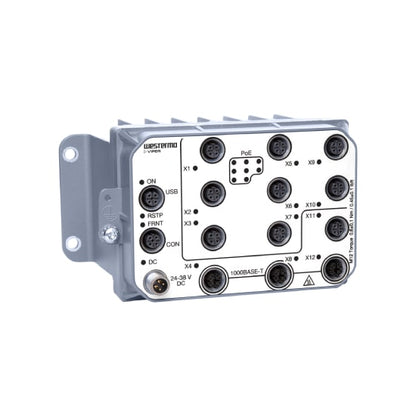

The Westermo Viper-112A-T3G-P8-LV managed Ethernet switch is a high-performance device to answer the demanding requirements of industrial environments. The Viper-112A-T3G-P8-LV combines advanced networking features with rugged durability for use in onboard systems such as trains and metros. As an EN 50155 managed gigabit switch, the Westermo Viper-112A-T3G-P8-LV delivers robust performance in harsh conditions such as extreme temperatures, vibrations, and electromagnetic interference. The switch offers 12 Ethernet ports, including 3 Gbps and 9 100 Mbps ports to ensure efficient data transmission for various industrial devices. With PoE routing switch functionality, it simplifies powering connected devices such as cameras and access points and reduces cabling requirements. This industrial managed Ethernet switch provides enhanced security, redundancy, and network stability.
Compact 12-Port Routing Switch
The Westermo Viper-112A-T3G-P8-LV switch is a compact 12-port routing switch and features 3 x Ethernet 1 Gbps (X-coded) and 9 x Ethernet 100 Mbps (D-coded) ports to allow integration of various network devices. The inclusion of 8 x PoE ports simplifies powering multiple devices such as cameras, access points, and NVRs (Network Video Recorders) without the need for separate power sources. This capability reduces installation complexity and enhances the efficiency of critical networks.
Advanced WeOS Operating System and IP67 Protection

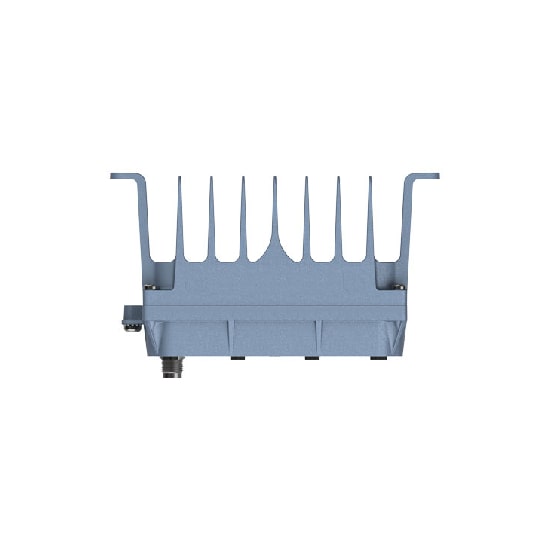

Westermo Viper-112A-T3G-P8-LV delivers advanced features like redundancy protocols, network security, and fast recovery times using the FRNT ring protocol. This ensures the switch provides uninterrupted communication even in the event of a network failure. Its robust construction includes IP67 protection safeguards the device against dust, moisture, and harsh environmental conditions. Additionally, this Westermo Ethernet switch has a GORE-TEX® membrane for pressure equalization and enhances its durability. The full metal housing offers superior physical protection for the most demanding industrial environments, such as Factory Automation, Railway, Road Transportation, Oil and Gas.
Wide Voltage and Temperature Ranges for Extreme Conditions
The Westermo Viper-112A-T3G-P8-LV operates in extreme conditions, with an operational temperature range of -40 to +70°C (-40 to +158°F) and handles up to +85°C for short periods. It is suitable for both indoor and outdoor applications in severe climates. The switch operates within a wide voltage range, from 24 to 38 VDC, with a tolerance of 16.8 to 49.4 VDC (14.4 to 53.2 VDC for 100 ms). Thus, it can be deployed in various power systems and boosts its reliability and versatility in industrial automation.
Westermo Viper-112A-T3G-P8-LV Certifications
The Westermo Viper 112A T3G P8 LV holds CE certification and confirms compliance with European safety standards, and an E1 certification, which guarantees its performance in vehicular environments. The switch also meets NFPA 130 fire safety standards and EN 45545-2 for fire protection in railway vehicles, making it a safe choice for deployment in these critical sectors. Moreover, its electromagnetic compatibility (EMC) shows that the device operates reliably in environments with high electronic noise and extends its utility. All these details can be found in the Westermo Viper-112A-T3G-P8-LV datasheet and confirm its power with the toughest industry standards for reliability and safety.
In conclusion, the Westermo Viper-112A-T3G-P8-LV managed Ethernet switch offers exceptional performance, durability, and reliability for industrial applications. With its advanced features and robust certifications, this switch ensures connectivity in the harshest environments. To buy the Westermo Viper-112A-T3G-P8-LV at the best price, you can find it on sale in the Middle East (UAE (Dubai, Abu Dhabi), KSA (Al Khobar, Riyadh), Kuwait, Qatar, and Oman) at Easy World Automation.
