Westermo

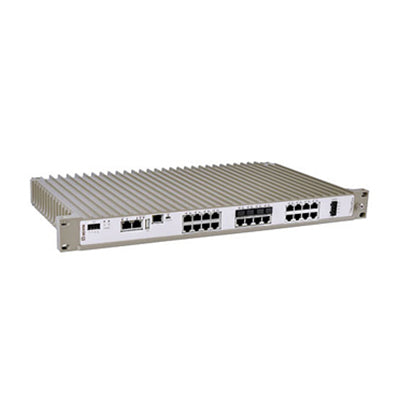

Westermo RFIR-227-F4G-T7G-DC Managed Ethernet Switch

Westermo RFIR-227-F4G-T7G-DC Managed Ethernet Switch

$5,244.00 USD
$5,244.00 USD
Sale Sold out
  • 16 to 60 VDC
  • 16 x 10/100 Mbit/s, Ethernet TX, RJ-45
  • 19” Industrial Routing Switch DC version
  • 7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
  • 4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
View full details

Description

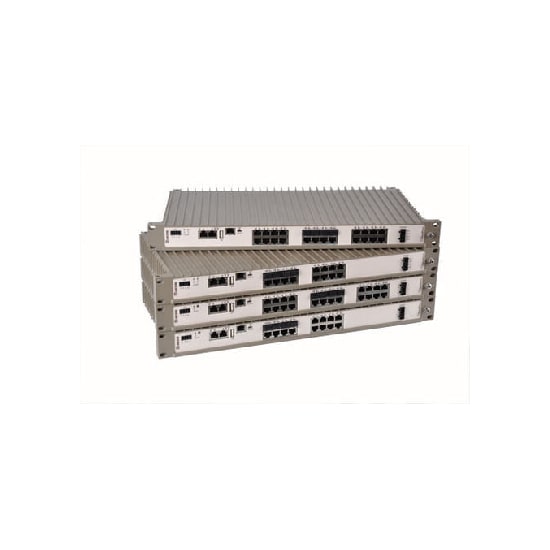

The RFIR (RedFox Industrial Rack) is a high performance layer 3 industrial Ethernet switch designed for high network traffic applications. Various port configurations are available that can be further customised with SFP transceivers. RFIR is powered by the Westermo WeOS network operating system.

RFIR is designed for 19” cabinets according to ETSI standard making it suitable for use in control room networks as well as for cabinets installed along railway trackside installations. RFIR is designed to run efficiently from a DC power supply, the unit is also equipped with configurable I/O fault contact that make it ideal for easy installation and monitoring in industrial applications. Only industrial grade components are used which gives RFIR an MTBF of 275 000 hours that ensures a long service life. A wide operating temperature range -40 to +70°C (-40 to +158°F) can be achieved with no moving parts or cooling holes in the case.

Attachment

Datasheet

Specification

Number of ports: 27 Ports
10/100Mb RJ45 (Megabit) Ports: 16 Ports
10/100/1000Mb RJ45 (Gigabit) Ports: 7 Ports
USB: 1 USB 2.0 port and 1 Micro-B port
MTBF: 275,000 hour
Network working layers: Layer 3
Switch type: Managed
Dimensions: 466x258x43mm
Installation: Rackmount
Operating Temperature: -40 to 70 ° C
Operation Humidity: 5% to 95% RH
Storage Humidity: 5% to 95% RH
Storage Temperature: -40 to 85 ° C
Weight: 3.8kg
Protocols and work standards: DNV ,GL
