Westermo

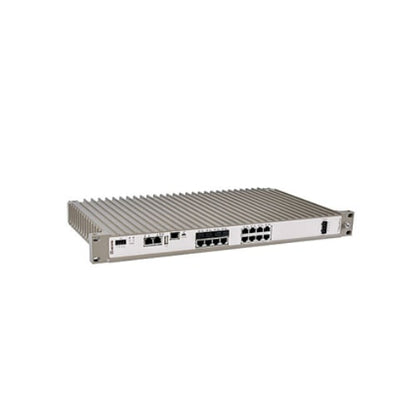

Westermo RFIR-219-F4G-T7G-DC Managed Ethernet Switch

Westermo RFIR-219-F4G-T7G-DC Managed Ethernet Switch

$5,235.00 USD
$5,235.00 USD
Sale Sold out
  • 16 to 60 VDC
  • 8 x 10/100 Mbit/s, Ethernet TX, RJ-45
  • 19” Industrial Routing Switch DC version
  • 7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
  • 4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
View full details

Description

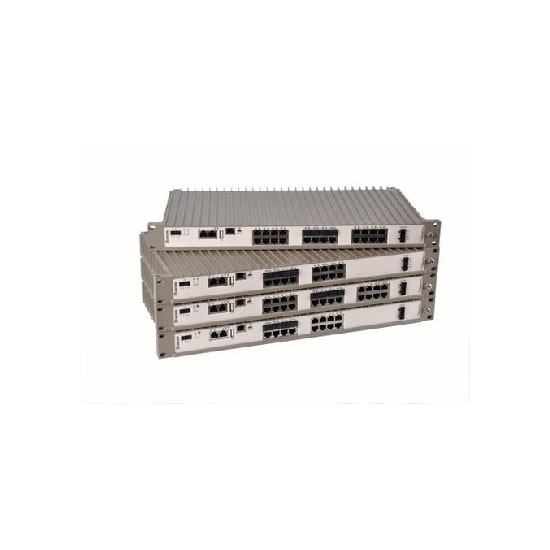

The RFIR (RedFox Industrial Rack) is a high-performance layer 3 industrial Ethernet switch designed for high network traffic applications. Various port configurations are available that can be further customized with SFP transceivers. RFIR is powered by the Westermo WeOS network operating system.

RFIR is designed for 19” cabinets according to ETSI standards making it suitable for use in control room networks as well as for cabinets installed along railway trackside installations. RFIR is designed to run efficiently from a DC power supply, the unit is also equipped with configurable I/O fault contact that makes it ideal for easy installation and monitoring in industrial applications. Only industrial grade components are used which gives the RedFox an MTBF of 293 000 hours and ensures a long service life.

A wide operating temperature range of -40 to +70°C (-40 to +158°F) can be achieved with no moving parts or cooling holes in the case. RFIR has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.

Attachment

Datasheet

Specification

10/100Mb RJ45 (Megabit) Ports: 8 Ports
10/100/1000Mb RJ45 (Gigabit) Ports: 7 Ports
USB: 1 USB 2.0 port and 1 Micro-B port
Other ports: 4 Combo 1000Mbps ports and 4 digital input and output ports
Power Consumption (Output Adapter): 20V DC, 0.93A or 48V DC, 0.38A
MTBF: 293,000 hour
Network working layers: Layer 3
Switch type: Managed
Dimensions: 466x258x43mm
Housing: Aluminium
Installation: Rackmount
Operating Temperature: -40 to 70 ° C
Operation Humidity: 5% to 95% RH
Standards and Certifications: EN 50121-4, EN 55024, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, IEC 62236-4, UL/IEC/EN 60950-1
Storage Humidity: 5% to 95% RH
Storage Temperature: -40 to 85 ° C
Protocols and work standards: DNV, GL
