Westermo

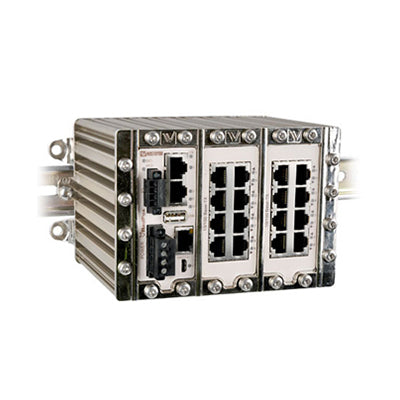

Westermo RFI-219-T3G Managed Ethernet Switch

Westermo RFI-219-T3G Managed Ethernet Switch

$3,033.00 USD
$3,033.00 USD
Sale Sold out
  • Industrial Routing Switch
  • 16 x 10/100 Mbit/s, Ethernet TX, RJ-45
  • 3 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
View full details

Description

RedFox is a high performance layer 3 industrial Ethernet switch designed for high network traffic applications. Various port configurations are available that can be further customised with SFP transceivers RedFox is powered by the Westermo WeOS network operating system.

The RedFox is designed for use in heavy duty industrial applications in its robust aluminium housing. Its wide power range and I/O fault contact make it ideal for easy installation and monitoring in industrial applications. Only industrial grade components are used which gives the RedFox an MTBF of 303,000 hours and ensures a long service life. A wide operating temperature range –40 to +70°C (–40 to +158°F) can be achieved with no moving parts or cooling holes in the case.

Attachment

Datasheet

Specification

Number of ports: 19 Ports
10/100Mb RJ45 (Megabit) Ports: 16 Ports
10/100/1000Mb RJ45 (Gigabit) Ports: 3 Ports
Other ports: 4 digital input and output ports
MTBF: 379,000 hour
Network working layers: Layer 3
Switch type: Managed
Dimensions: 175x100x122mm
Housing: Aluminum
Installation: Din-rail
Operating Temperature: -40 to 70 ° C
Operation Humidity: 5% to 95% RH
Storage Humidity: 5% to 95% RH
Storage Temperature: -50 to 85 ° C
Weight: 2.2kg
Protocols and work standards: DNV ,GL
