Westermo

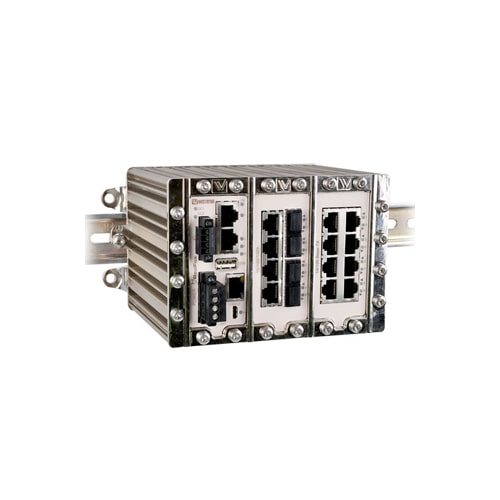

Westermo RFI-219-F4G-T7G Managed Ethernet Switch

Westermo RFI-219-F4G-T7G Managed Ethernet Switch

$4,381.00 USD
$4,381.00 USD
Sale Sold out
  • Industrial Routing Switch
  • 8 x 10/100 Mbit/s, Ethernet TX, RJ-45
  • 7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45
  • 4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
View full details

Description

RedFox is a high-performance layer 3 industrial Ethernet switch designed for high network traffic applications. Various port configurations are available that can be further customised with SFP transceivers RedFox is powered by the Westermo WeOS network operating system.

The RedFox is designed for use in heavy-duty industrial applications in its robust aluminum housing. Its wide power range and I/O fault contact make it ideal for easy installation and monitoring in industrial applications. Only industrial-grade components are used which gives the RedFox an MTBF of 303,000 hours and ensures a long service life. A wide operating temperature range of –40 to +70°C (–40 to +158°F) can be achieved with no moving parts or cooling holes in the case.

RedFox has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.

Attachment

Datasheet

Specification

Number of ports: 19 Ports
10/100Mb RJ45 (Megabit) Ports: 8 Ports
10/100/1000Mb RJ45 (Gigabit) Ports: 7 Ports
USB: 1 USB 2.0 port and 1 Console Micro-B port
Other ports: 4 Combo 1000Mbps ports and 4 digital input and output ports
Power Consumption (Output Adapter): 20V DC, 0.93A and 48V DC, 0.38A
MTBF: 303,000 hour
Dimensions: 175x100x122mm
Housing: Aluminium
Installation: Din-rail
Operating Temperature: -40 to 70 ° C
Operation Humidity: 5% to 95% RH
Standards and Certifications: EN 50121-4, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, UL/IEC/EN 60950-1, IP40
Storage Humidity: 5% to 95% RH
Storage Temperature: -50 to 85 ° C
