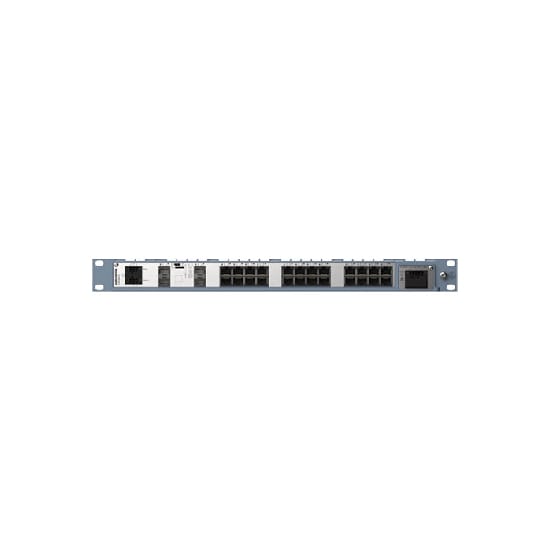

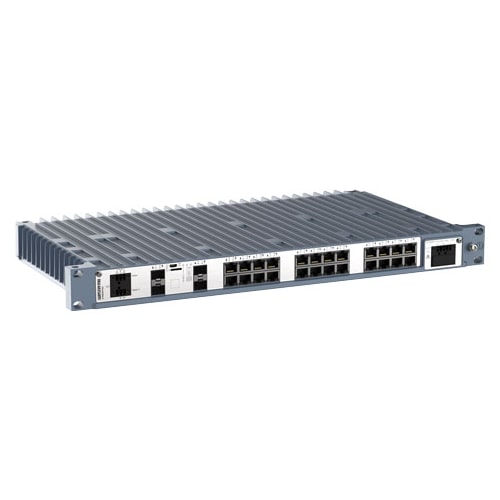

Westermo RedFox-5728-F4G-T24G-HV Managed Ethernet Switch

Westermo RedFox-5728-F4G-T24G-HV Managed Ethernet Switch

$5,750.00 USD
$5,750.00 USD
Sale Sold out

Lead Time: 2 - 5 Weeks

  • 19” Rackmount Managed Ethernet Switch - high voltage version, layer 2
  • 110 to 240 V AC/DC
  • 24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
  • 4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
  • IEC 61850-3 and IEEE 1613 Class 2 approval
View full details

Description

RedFox-5728 takes communication reliability for substations to a new level. We know that in critical substation automation applications, even the loss of a single piece of data can disturb the operations, and that is why RedFox-5728 brings the highest reliability to your network. Withstanding the toughest environmental conditions, including the high EMI levels derived from load-switching lightning strikes, and extreme ambient temperatures, RedFox-5728 ensures 100% uptime, no matter what.

IEC 61850-3 and IEEE 1613 standards define the requirements and test levels for networking devices. They specify two different device reliability classes: Class 1 devices, which allow for communication errors; and Class 2 devices, which do not allow loss of a single transmission package even during the highest electromagnetic disturbances (EMI). RedFox-5728 meets or exceeds all test levels for Class 2 fulfillment, attaining KEMA-type test gold certification, and ensuring zero downtime, communication losses, delays, or errors.

Attachment

Datasheet

Specification

Number of ports: 28 Ports
10/100/1000Mb RJ45 (Gigabit) Ports: 24 Ports
1000Mb SFP Fiber optic (Gigabit) Ports: 4 Ports with LC connector
USB: USB 2.0 port
Other ports: 1 Micro SD Port and 1 I/O (1 digital in, 1 digital out) Port
Power Consumption (Output Adapter): 110 to 240 V AC/DC
Network working layers: layer 2
Switch type: Managed
Port Aggregation: IEEE 802.1AX/802.3ad (LACP and Static)
Dimensions: 482.4 x 43 x 258 mm (18.99 x 0.12 x 10.16 inches)
Housing: Full metal
Installation: Rackmount, Railway applications
Operating Temperature: -40 to +70 °C (-40 to +158 °F)
Operation Humidity: 5-95% relative humidity
Standards and Certifications: EMC, EMI, IEEE 1613Testing Requirements for Communications Networking Devices Installed in Electric Power Substations, IEC 61850-3 Communication networks and systems for power utility automation – Part 3: General requirements, Safety
Storage Temperature: -50 to +85 °C (-58 to +185 °F)
Protocols and work standards: IEEE 1613, IEC 61850-3
Protocols and management standards: IEEE 802.1D MAC Bridges, IEEE 802.1Q Static VLAN and VLAN Tagging, IEEE 802.1AB LLDP, IGMPv1/v2/v3 Snooping, Static Multicast, IEEE 802.1p, DHCP Client, DNS Client, DDNS, NTP Client (NTPv4)
