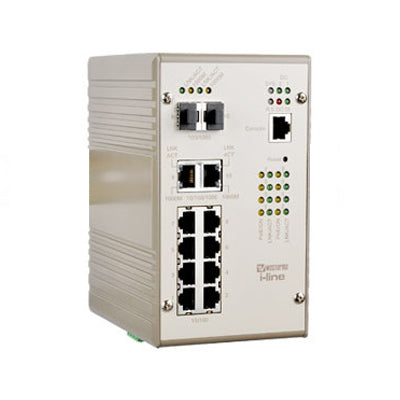

Westermo PMI-110-F2G Managed Ethernet Switch

The PMI-110-F2G is a layer 2 industrial Ethernet switch with Power over Ethernet and gigabit capability. It is designed for critical PoE applications such as real time video surveillance, WiMAX systems and wireless access points. The 8 PoE ports are compliant with both IEEE 802.3af (max 15.4 W) and IEEE 802.3at (max 30W) so that also high-power devices such as PTZ cameras and wireless access points can be handled. The two gigabit combo ports provide high speed uplink to connect to backbone switches. Digital Diagnostic Monitoring (DDM) is supported for monitoring of fiber links.

The unit is designed for DIN rail mounting into industrial cabinets. Features like redundant power supply and digital I/O make the PMI-110-F2G well prepared for serving in most automation solutions.

The robust design, with no moving parts, a wide temperature range, rigid housing and industrial electrical design, makes the PMI-110-F2G suitable for environments such as industrial automation, machine building, building automation etc.
