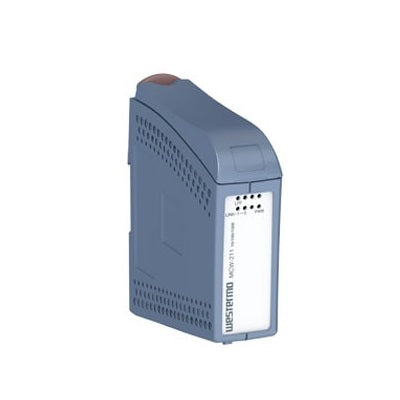

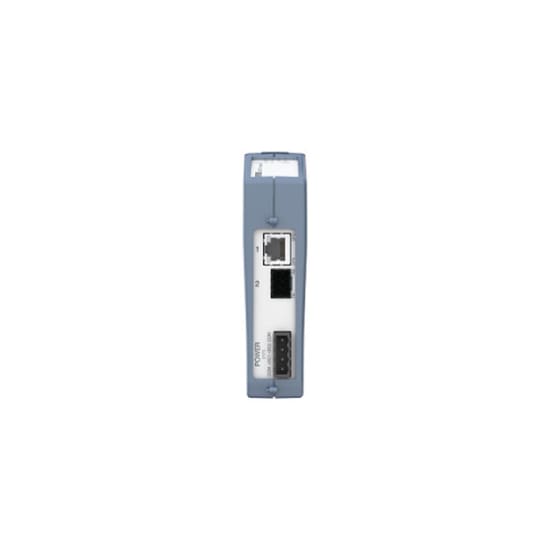

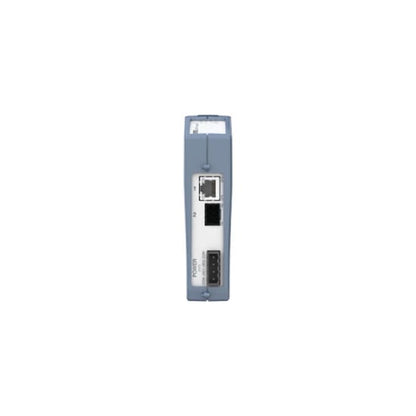

Westermo MCW-211-F1G-T1G Industrial Ethernet To Fiber Media Converter

Westermo MCW-211-F1G-T1G Industrial Ethernet To Fiber Media Converter

$585.25 USD
$585.25 USD
Sale Sold out
  • Industrial Ethernet Gigabit Media Converter
  • 1 x RJ-45, 10 Mbit/s, 100 Mbit/s or 1 Gbit/s
  • 1x SFP (LC connector), 100 Mbit/s or 1 Gbit/s, transceivers supported
View full details

Description

The MCW-211-F1G-T1G is an unmanaged media converter with one SFP fibre port supporting 100 Mbit/s or Gbit Ethernet, and one copper port supporting 10/100 Mbit/s or Gbit Ethernet. It is designed for easy use in heavy duty industrial, maritime and rail trackside applications. The unit supports 802.1Q long packets which allow all standard industrial Ethernet protocols to be used.

The Westermo range of 100Mbit or Gbit Small Form-factor Pluggable (SFP) transceivers are available as multimode, singlemode or Bi-Di transceivers with distance up to 120 km.

Attachment

Datasheet

Specification

10/100/1000Mb RJ45 (Gigabit) Ports: 1 Port
1000Mb SFP Fiber optic (Gigabit) Ports: 1 LC Port
Protocols and work standards: IEEE 802.3 ,802.1Q
MTBF: 1,426,000 hour
Power consumed: 12V DC, 0.14A and 48V DC, 0.03A
Type of power input: Terminal input
Housing: ABS
Dimensions: 34x123x121mm
Weight: 0.25Kg
Operating Temperature: -40 to 74 ° C
Storage Temperature: -50 to 85 ° C
Installation: Din-rail
