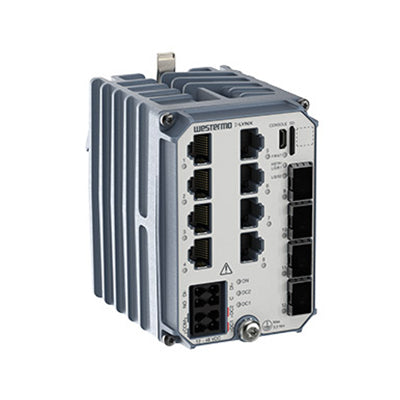

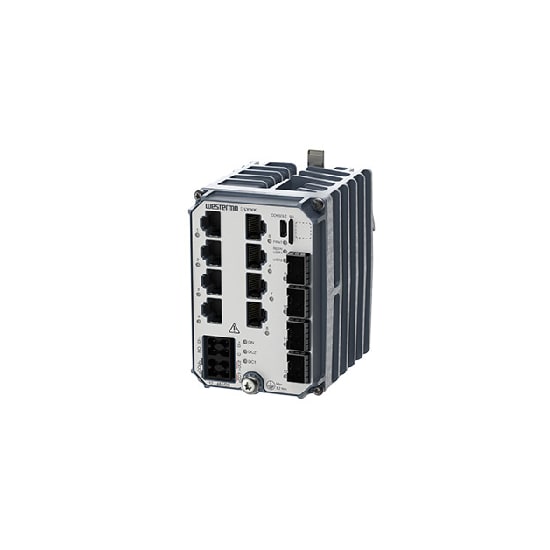

Westermo Lynx 5512-F4G-T8G-LV Managed Ethernet Switch

Westermo Lynx 5512-F4G-T8G-LV Managed Ethernet Switch

Regular price $2,539.54 USD
Regular price Sale price $2,539.54 USD
Sale Sold out
  • 12 Gigabit ports, including 4 x SFP
  • Advanced WeOS support
  • Low power consumption, 9.6 to 60 VDC supply
  • All connectors on the front
  • Ultra-robust IP40 metal housing
  • Multiple network resilience solutions
View full details

Description

The Lynx 5500 series is the most compact high-performance industrial Ethernet switch series on the market. It has been developed with the needs of current and future industrial data network, combining outstanding performance, durability, and reliability these switches are ideal for handling big data and high bandwidth requirements typically found within transportation, manufacturing, energy, smart cities, and other applications.

Integrating hardware, software, and network design support tools, this next-generation switch platform offers advanced capabilities, the lowest total cost of ownership and will create the most reliable and resilient networks.

Attachment

Datasheet

Specification

Number of ports: 12 Ports
10/100/1000Mb RJ45 (Gigabit) Ports: 8 Ports
1000Mb SFP Fiber optic (Gigabit) Ports: 4 Ports with LC Connector
USB: 1 Micro USB Consol Port
Network working layers: Layer 2
Switch type: Managed
Port Aggregation: IEEE 802.1D/802.1w (RSTP), IEEE 802.AX/802.3ad
Dimensions: 70 x 100 x 100 mm (2.7 x 3.9 x 3.9 inches)
Housing: Full metal
Operating Temperature:-40 to +74°C (-40 to +165°F)
Operation Humidity: 5-95% relative humidity
Storage Temperature: -50 to +85°C (-58 to +185°F)
Weight: 690 gr
