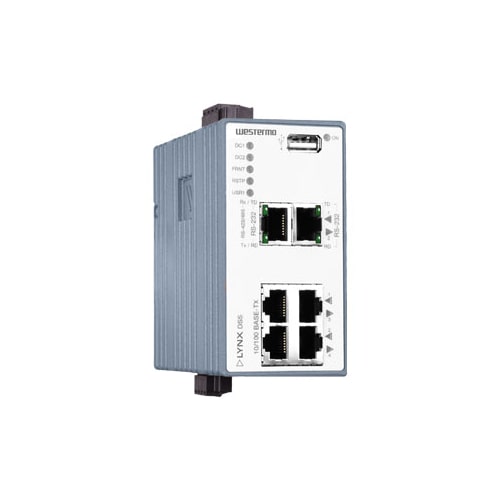

Westermo L206-S2 Managed Ethernet Switch

Westermo L206-S2 Managed Ethernet Switch

$1,872.00 USD
$1,872.00 USD
Sale Sold out

Lead Time: 2 - 5 Weeks

  • 4 x RJ-45, 10 Mbit/s, 100 Mbit/s
  • 1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
  • 1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
  • Managed Device Server Switch with Routing Functionality
View full details

Description

Lynx DSS is available in several versions, the L206-S2 is a device server with a layer 3 industrial Ethernet switch, powered by the Westermo WeOS network operating system. Lynx DSS is the most compact and has the lowest power requirements in this class of device servers. Lynx DSS has 4 10/100 Mbit/s ports and two serial ports. One of the serial ports is configured for RS-232 the other one can be configured for RS-232 or RS-422/485.

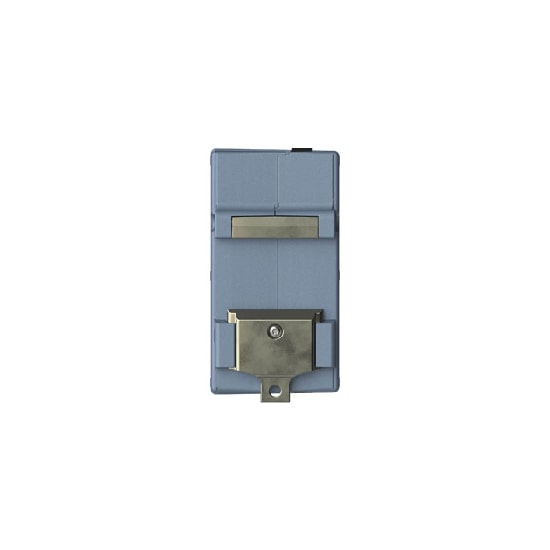

Lynx DSS is designed for simple industrial applications, from the robust DIN rail clip solution to the configurable fault contact and the industrial-level dual power inputs. Only industrial-grade components are used which gives the Lynx DSS an MTBF of 593,000 hours and ensures a long service life. A wide operating temperature range of –40 to +70°C (–40 to +158°F) can be achieved with no moving parts or cooling holes in the case. Lynx DSS has been tested by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.

Attachment

Datasheet

Specification

Number of ports: 6 Ports
10/100Mb RJ45 (Megabit) Ports: 4 Ports
Serial port: 1 RJ-45 port with RS-232 standard and 1 RJ-45 port with RS-422/485 standard
USB: 1 USB 2.0 port
Backup: STP/RSTP
Maximum power consumption: 30W
Power Consumption (Output Adapter): 24V DC, 1.3A
MTBF: 593,000 hour
Network working layers: Layer 3
Switch type: Managed
Port Aggregation: IEEE 802.1AX/802.3ad
Dimensions: 52.5x100x101mm
Housing: Metal
Installation: Din-rail - Use in sea and rail areas
Operating Temperature: -40 to 70 ° C
Operation Humidity: 5% to %95 RH
Standards and Certifications: DNV 2.4, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4m, EN 55022 +A1, EN 55024 + A1 + A2, FCC part 15, EN 50121-4, IEC 62236-4, EN 61000-4-2, EN 61000-4-4, EN 61000-4-5, EN 61000-4-8, EN 61000-4-9, EN 61000-4-6, EN 55022, UL/IEC/EN 60950-1, EN 60950-1, IEC 60068-2-6, IEC-60068-2-27, IEC 60068-2-27, IP40
Storage Humidity: 5% to %95 RH
Storage Temperature: -50 to 85 ° C
Protocols and work standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseTX and 100Base FX, IEEE 802.1Q Static VLAN and VLAN Tagging, IEEE 802.3x Flow Control , IEEE 802.1p Class of Service , IEEE 802.1X Port Access Control
Protocols and management standards: OSPFv2, RIPv1/v2, Robust VRRP, NAT, HTTP and HTTPS or CLI (SSHv2 or Telnet), SNMPv1/v2c/v3, SNTP (NTP client), PPPoE client, DHCP client, DHCP server including option 82, DHCP relay agent including option 82, DDNS
