Westermo

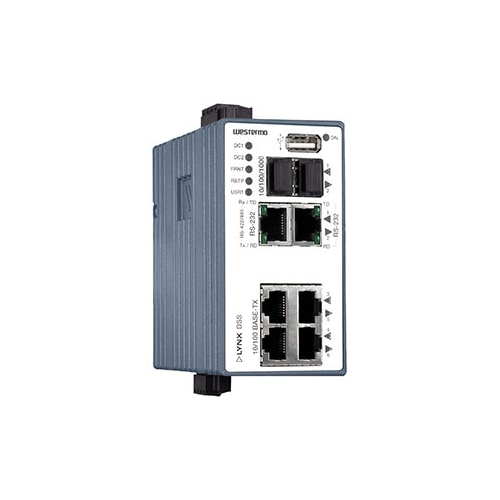

Westermo L108-F2G-S2-12VDC Managed Ethernet Switch

Westermo L108-F2G-S2-12VDC Managed Ethernet Switch

Regular price $1,778.00 USD
Regular price Sale price $1,778.00 USD
Sale Sold out

Lead Time: 4 - 8 Weeks

Westermo L108-F2G-S2-12VDC Key Features

  • Managed Device Server Switch
  • 4 x RJ-45, 10 Mbit/s, 100 Mbit/s
  • 1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
  • 1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
  • 2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
View full details

Description

The Westermo L108-F2G-S2-12VDC is an industrially managed Ethernet switch that is robust and built for harsh environments where reliability, performance, and security are critical. It forms part of the Westermo Lynx series, which offers compact solutions to complex networking requirements, especially in Railway, Marine, Road Transportation, and Factory Automation. Westermo L108-F2G-S2-12VDC Switch: The Westermo L108-F2G-S2-12VDC switch comes with a Layer 2 managed Ethernet feature that provides high-speed data transmission with very stable system performance.
Its configuration, L108-F2G-S2-12VDC, supports gigabit connections by using flexible SFP transceiver design and thereby facilitates the smooth integration of both copper and fiber networks. Westermo Lynx L108-F2G-S2-12VDC Industrial gigabit switch enables mission-critical applications, with features that are typical of low power consumption and inclusive management. This managed switch has been engineered to sustain extreme temperatures and harsh environments, thus remaining a profitable choice for long-term networking solutions. Equipped with a robust tool such as WeOS and a rugged design, the Westermo L108 F2G S2 12VDC switch expands system performance and flexibility in operations.

Flexible SFP Transceiver Design
The following are the key features that characterize the Westermo L108-F2G-S2-12VDC managed Ethernet switch: it has a flexible SFP transceiver design that can accommodate fiber or copper as its gigabit communication medium. The Westermo Lynx L108-F2G-S2-12VDC switch is fitted with 4 copper ports to meet high-speed Ethernet connectivity and 2 SFP fiber ports for extended network reach. This flexibility will surely make the Lynx L108 F2G S2 12VDC switch fit all kinds of industrial network applications due to infrastructures. This is the perfect solution for a large-scale deployment where stability and scalability are of top priority L108 F2G S2 12VDC.

Low Power Consumption and Strong Construction
The Westermo L108-F2G-S2-12VDC features low power consumption to minimize operational expenses and ensure high energy efficiency. Its tough metal DIN rail housing provides the switch with resistance against the most adverse conditions related to vibration and dust of an industry. It also has protection against solid particles due to the IP40 rating, ensuring further durability of the product. The operating temperature for the L108-F2G-S2-12VDC, extending from -40 to +70°C, is designed for the most extreme environmental conditions.

Advanced Network Recovery and Configurable Capabilities
The Westermo L108-F2G-S2-12VDC managed Ethernet switch has a network ring recovery time of less than 20 ms in case of link failures, therefore assuring minimal disruption. Its highly configurable fault I/O contact helps in handling events with ease and provides alarm notifications for enhanced network resilience. Equipped with 1 serial port RS 232 and 1 RS 232 or RS 485 serial port, this Westermo Layer 2 managed ethernet switch offers support for legacy systems along with additional networking devices. Powered by WeOS, the Westermo Lynx series switch is able to provide improved features in control and management.

Westermo L108-F2G-S2-12VDC Certification
Westermo L108-F2G-S2-12VDC Managed Ethernet Switch supplies industrial reliability with rigid certifications. It has an industrial-grade EMC certification, which can guarantee solid performance in environments that possess high electromagnetic interference. Durability in mobile and harsh environments is also assured because of rigid Shock and Vibration testing. Conformity to the standards for Safety and Electromagnetic Compatibility of CE, UL, and DNV was earlier told in the Westermo L108-F2G-S2-12VDC datasheet. The Westermo switch also meets the standards for traffic signal control and other transportation systems to NEMA TS2. These certifications will seal the Westermo L108-F2G-S2-12VDC switch as a reliable industrial-grade solution for mission-critical operations.

Westermo L108-F2G-S2-12VDC is an extremely versatile and robust switch that meets demanding industrial networking requirements very well. Easy World Automation supplies Westermo L108-F2G-S2-12VDC Managed Ethernet Switch at the best price in the Middle East, namely UAE, KSA, Kuwait, Qatar, and Oman, to ensure reliable and quality performance for your industrial network.

Attachment

Datasheet

Specification

Number of ports: 8 Ports
10/100Mb RJ45 (Megabit) Ports: 4 Ports
Serial port : 1 x RJ-45, RS-232, 50 bit/s to 115.2 kbit/s
USB: 1 x USB 2.0 host
Other ports : 2 x SFP 100 Mbit/s or 1 Gbit/s transceivers supported
Power Consumption (Output Adapter): 9.8 to 36 VDC
Fan / Fanless: Fanless
MTBF: 517,000 hours (MIL-HDBK-217K)
Network working layers: Layer 2
Switch type: Managed
dimensions: 52 x 119 x 101 mm (2.05 x 4.69 x 3.98 inches)
Installation: Din-rail
Operating Temperature: -40 to 70 ° C
Standards and Certifications: EN/IEC 61000-6-1, Immunity residential environments, EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-3, Emission residential environments, EN/IEC 61000-6-4, Emission industrial environments, EN 50121-4/IEC 62236-4, Railway signaling and telecommunications apparatus, EN/IEC/UL 60950-1
Storage Temperature: -50 to +85°C
