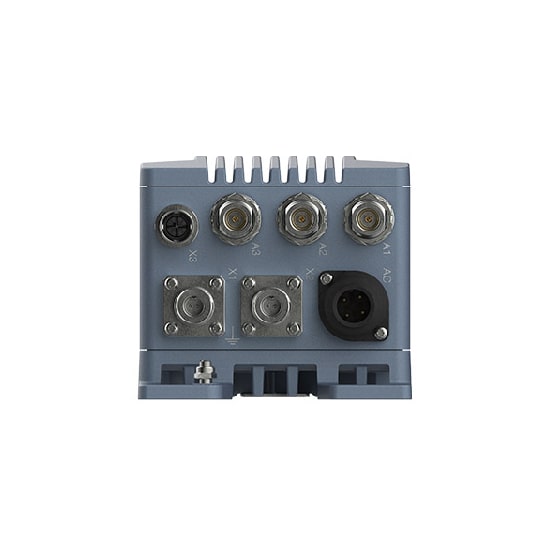

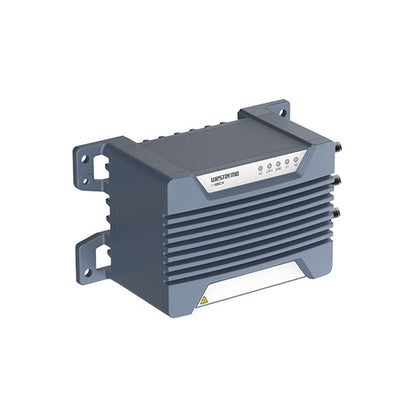

Westermo Ibex-RT-280 Access Point

Westermo Ibex-RT-280 Access Point

$5.00 USD
$5.00 USD
Sale Sold out

Lead Time: More Than 8 Weeks

  • 2x2 MIMO
  • 2.4 GHz and 5 GHz
  • Separate RF environment monitoring antenna
  • Dual fibre ports for ring installations
  • Flexible and easy set-up
  • Extended operating temperature range with guaranteed performance across the range
View full details

Description

Ibex-RT-280 is a wireless LAN infrastructure access point for industrial or trackside network infrastructure. With its dual fibre Ethernet ports, it can be directly installed as part of an FRNT ring or used in a daisy-chained setup. Ibex-RT-280 is designed to withstand the tough environment in, for instance, trackside applications, exposing the access point to constant vibration, extreme temperatures, humidity, and a demanding electromagnetic environment. A GORE-TEX® membrane prevents internal condensation and high-level isolation protects against overvoltage and spikes/ surges. Ibex-RT-280 comes with a built-in 100-240 VAC mains power supply and IP66 environmental protection for water and dust, further simplifying installation and reducing external component needs. N-type radio connectors allow direct connectivity of thick low-loss feeder-type RF cables. The device comes with a high-power radio interface calibrated to ensure high output power and excellent receiver sensitivity. It maintains high-speed data rates and reliable connections to industrial wireless clients even if the communication distance is increased.

Ibex-RT-280 provides an additional monitoring interface for out-of-band radar detection and monitoring, allowing surrounding WLAN devices and other interferences along the whole frequency band to be monitored, without adversely affecting the communication performance. Due to this, the device provides uninterrupted operation also on 5 GHz outdoor bands with radar detection (DFS) requirements. An overall optimized design results in a compact form factor in combination with very high MTBF for easy integration and low lifecycle cost. Thorough type testing at independent labs certifies compliance with a wide range of standards, including FCC. Meeting the requirements of the railway and signaling market, Ibex-RT-280 is very well suited for deployment in any other application with severe operating conditions and tough environments, for instance in the mining and shipping industry.

Attachment

Datasheet

Specification

10/100/1000BaseT(X): Ports 1 x 10/100/1000 Base-T with M12 X-code with M12 connector, 2 x 100 Base-FX with ODC connector
Modulation Type: wide band modulation techniques
Wireless Security WPA2 (CCMP), WPA3-Personal (SAE/OWE), WPA3-Enterprise (Suite-B), 802.11w, 802.1X, 802.11r
Security:HTTP/HTTPS with user authentication
WLAN Operation Mode:Access Point, Client
WLAN Standards IEEE 802.11b, 802.11g, 802.11a, 802.11n
Transmission Rates: 802.11b: 1 Mbit/s, 2, 5.5 and 11 Mbit/s, 802.11g and 802.11a: 6 Mbit/s, 9, 12, 18, 24, 36, 48 and 54 Mbit/s, 802.11n 20 MHz BW, LGI/SGI: from MCS0 6.5/7.2 Mbit/s to MCS15 130/144.4 Mbit/s, 802.11n 40 MHz BW, LGI/SGI: from MCS0 13.5/15 Mbit/s to MCS15 270/300 Mbit/s
Input Current: 0.2 A
Input Voltage: 100-240 VAC
Power Consumption: 100-240 VAC, 0.2 A, 50-60 Hz
Dimensions Packaged 111.4 x 99 x 195.4 mm (4.39 x 3.90 x 7.69 inches)
IP Rating: IP66
EMC: EN 50121-4, Railway applications - Electromagnetic compatibility. Part 4: Emission and immunity of the signalling and telecommunications apparatus, ETSI EN 301 489-1, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment and services - Part 1: Common technical requirements, ETSI EN 301 489-17, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment - Part 17: Specific conditions for Broadband Data Transmission Systems
Weight (PACKAGED): 2 kg without antennas
Housing: Full meta
Installation: Outside the track, Railway applications, Railway vehicles
Standards and Certifications: Climate : EN 50125-3, Railway applications – Environmental conditions for equipment, Part 3: Equipment for signaling and telecommunications, EMC, Shock and vibration, Insulation : EN 50124-1, Railway applications – Insulation coordination, Radio Communication, Safety
Operating Temperature: -40 to 70 °C
Safety: EN/IEC 62368-1, Safety Requirements for audio/video, information and communication technology equipment, EN 45545-2, Fire protection on railway vehicles, NFPA 130, Fire protection for fixed guideway transit and passenger rail system
MTBF: 233,000 hours (IEC 62380)
Management: SNMP, HTTP/HTTPS with user
