The Westermo Viper-112A-T3G-P8-HV managed Ethernet switch is a robust and high-performance solution for demanding industrial environments, particularly in Factory Automation, Railway, Road Transportation, Oil and Gas. This EN 50155 managed gigabit switch delivers reliable connectivity with superior network performance for onboard communication and data transmission systems. The Viper-112A-T3G-P8-HV offers 12 ports, including 3 Gbps Ethernet ports and 9 Fast Ethernet ports to ensure connectivity across various devices such as access points and surveillance systems. Its PoE functionality powers devices like cameras and sensors, reducing the need for additional power supplies. The Westermo Viper-112A-T3G-P8-HV has been supported by WeOS, a powerful operating system that enhances network security and reliability. This industrial managed Ethernet switch is a versatile and powerful addition to any industrial system. With MTBF (Mean Time Between Failures) ratings ensuring longevity and efficiency, the Westermo Viper 112A T3G P8 HV is a trusted solution for industries seeking rugged and reliable connectivity. Whether for a Westermo managed switch network or as a part of a PoE routing switch setup,
Compact 12 Port Routing Switch

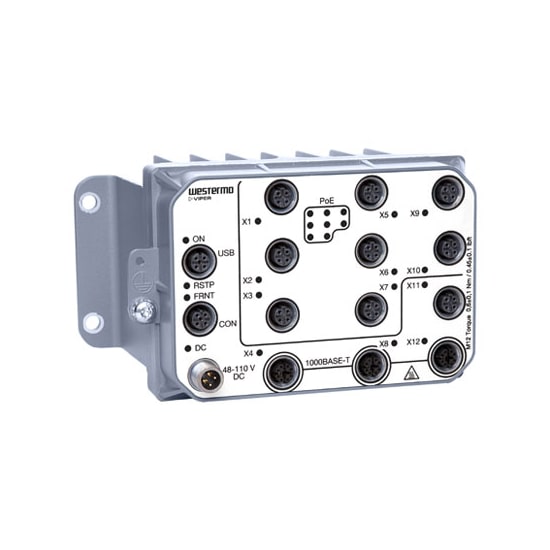

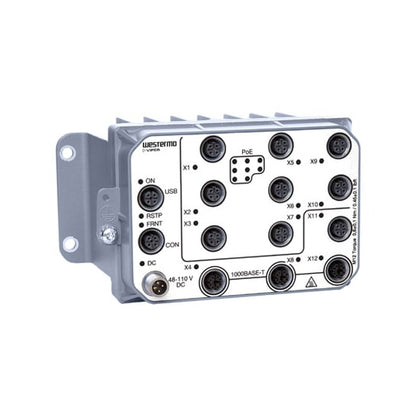

The Westermo Viper-112A-T3G-P8-HV has a compact 12-port routing switch, including 3 Gbps Ethernet ports (X-coded) and 9 Fast Ethernet ports (D-coded). These ports ensure efficient data flow across multiple devices and cover high-bandwidth applications such as video surveillance and real-time monitoring. The integration of PoE (Power over Ethernet) on 8 ports further enhances its utility and provides a streamlined solution for connecting cameras, sensors, and other powered devices without the need for external power supplies. So, the Viper-112A-T3G-P8-HV is a suitable choice for industries where space and power optimization are critical.
WeOS and Rugged Protection
its WeOS operating system provides advanced network security and management features, including the FRNT ring protocol for ultra-fast failover times. The Westermo Viper-112A-T3G-P8-HV switch offers a GORE-TEX® membrane and IP67 protection to be resistant to harsh weather conditions, dust, and water. The Viper 112A T3G P8 HV switch with an MTBF rating ensures long operational life for industrial environments. Its rugged construction, like a full metal housing, ensures its power to tolerate the mechanical challenges that are often encountered in automation.
Wide Voltage and Temperature Range
The Westermo Viper-112A-T3G-P8-HV operates over a wide voltage range, from 48 to 110 VDC, with a tolerance of 33.6 to 143 VDC (28.8 to 154 VDC for 100 ms). The switch has also been engineered for extreme temperatures, with an operational range of -40 to +70°C (-40 to +158°F), and it can endure up to +85°C for limited periods. This temperature resilience is important for outdoor applications or installations in harsh situations where other switches might fail.
Westermo Viper-112A-T3G-P8-HV Certifications
The Westermo Viper-112A-T3G-P8-HV has been CE certified to be compliant with European safety, health, and environmental protection standards. It also holds an E1 certification and validates its suitability for use in vehicles. The switch meets the NFPA 130 and EN 45545-2 standards for fire safety and ensures it can operate safely in environments with fire risks. Additionally, the Viper-112A-T3G-P8-HV excels in electromagnetic compatibility (EMC). All these certifications are detailed in the Westermo Viper-112A-T3G-P8-HV datasheet, as a trusted choice for industrial applications requiring top-tier compliance and reliability.
In conclusion, the Westermo Viper-112A-T3G-P8-HV managed Ethernet switch is a high-performance, reliable solution for industries. Its rugged construction, extensive certifications, and advanced features make it the ideal choice for challenging environments. For those looking to buy this Westermo switch at the best price, you can find it on sale in the Middle East (UAE (Dubai, Abu Dhabi), KSA (Al Khobar, Riyadh), Kuwait, Qatar, and Oman) at Easy World Automation.
